Flashings

Step flashings for deck mounted skylights FX, FV, FVE, FVS

Step flashings for skylights installed with flat roofing materials

Description

Step flashing is made from powder-coated aluminum. It is used with flat roofing material up to 3/8 inch, such as shingles plain-tile, double-lap roofing, slates or tar boards.

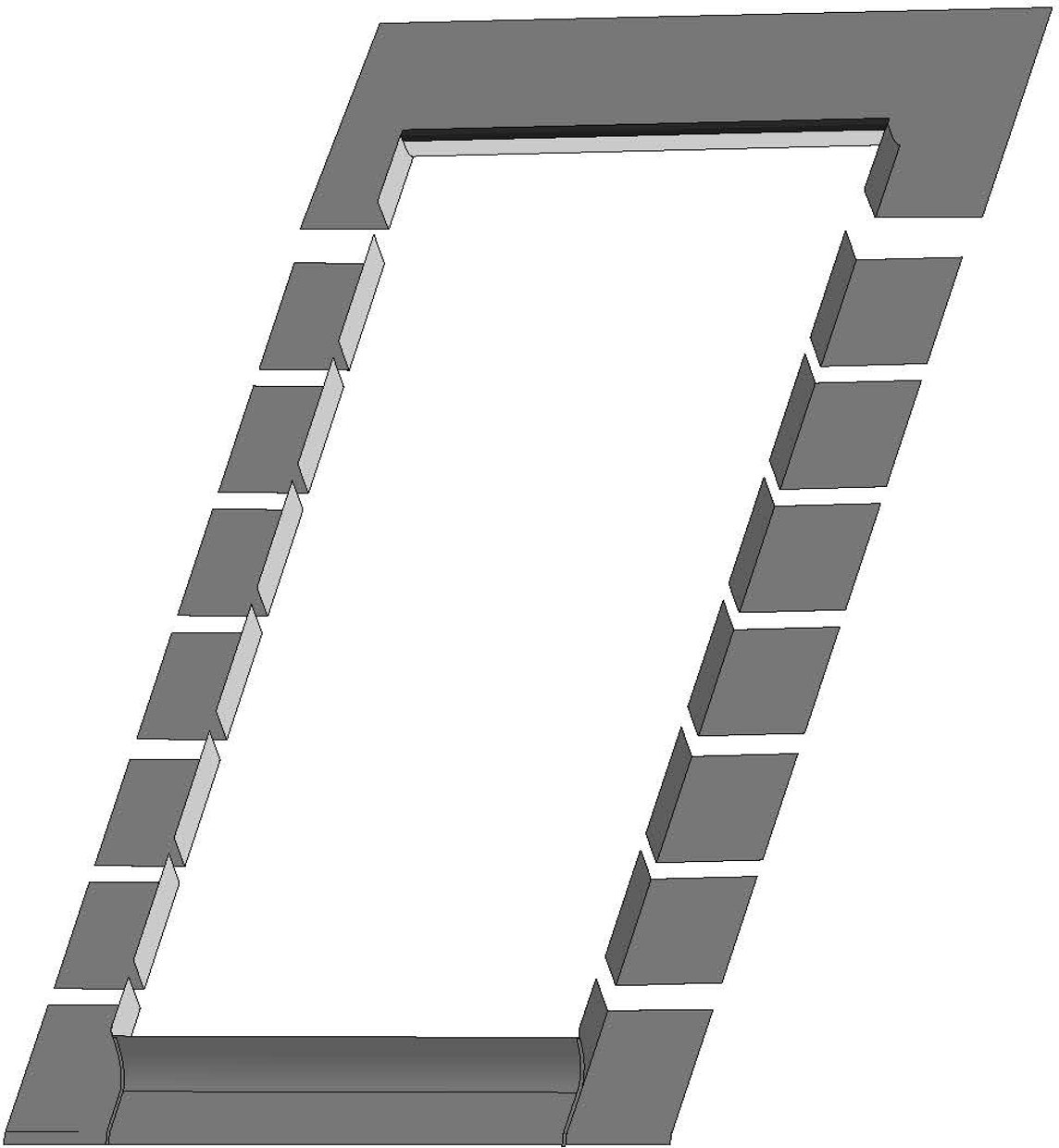

EL Step flashing

The side elements of the EL step flashing are laid alternately with the roofing material (maximum roofing material thickness 5/16’’). The bottom section of the flashing is equipped with a butyl strip to afix the panel and protect against wind driven rain in stormy conditions.


EL - flashing for use with FX, FV, FVE, FVS skylights

Step flashings for skylights installed with flat roofing materials



EL-T and ELA-T THERMO step flashing (insulated)

NEW insulated flashing is designed for use in cold regions where temperatures fall below zero celcius. It also combines well with an insulated roof. These flashings help eliminate “cool areas” that sometimes occur between the roof deck and skylight causing condensation on the interior drywall. The underside of the thermo flashing has flexible insulating material, creating a barrier by tightly sealing the skylight frame.



THERMO flashing increases the skylight's insulation value by up to 10%*!
*versus EL step flashing



EL-T – flashing for use with FX skylights

ELA-T – flashing for use with FV, FVE, FVS skylights



PLEASE MAKE SURE THE APPROPRIATE FLASHING KITS ARE ORDERED BASED ON THE TYPE OF SKYLIGHT.



Step flashings for skylights installed with flat roofing materials

EL step flashing for FX FV FVE FVS deck mounted skylights

Step flashings for skylights installed with flat roofing materials

EL-T thermo insulated step flashing for FX fixed deck mounted skylights

Step flashings for skylights installed with flat roofing materials

ELA-T Thermo insulated step flashing for FV FVE FVS venting deck mounted skylights



Step flashings for skylights installed with flat roofing materials

EL flashing                                                                   EL-T Thermo insulated flashing
